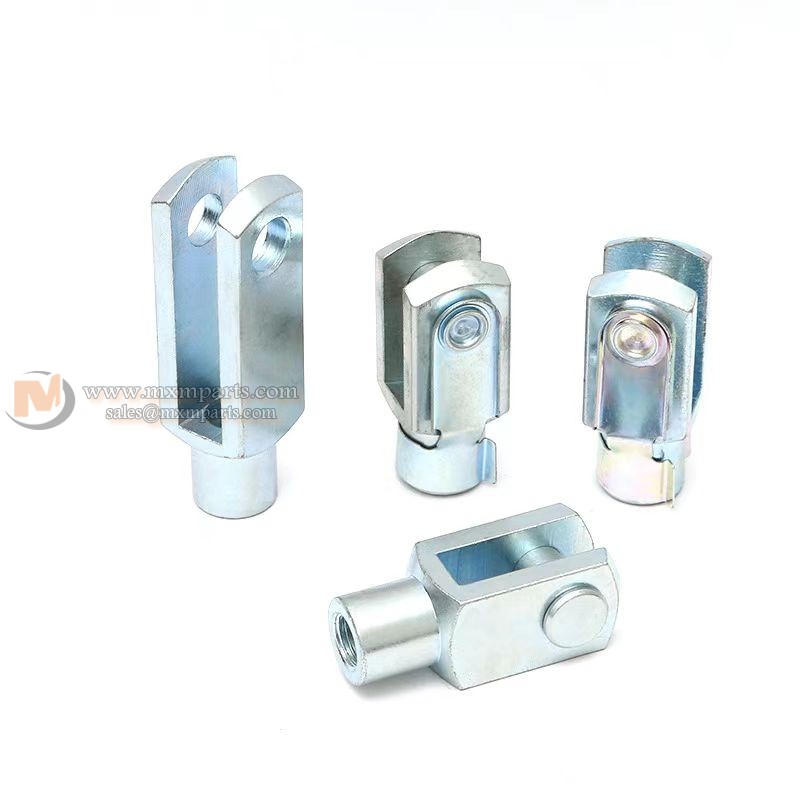

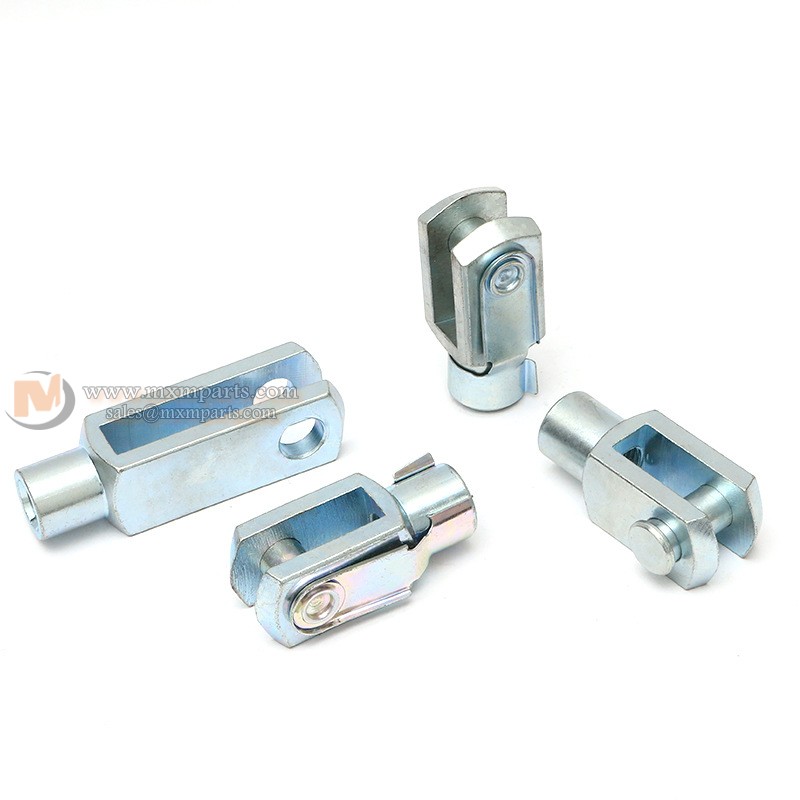

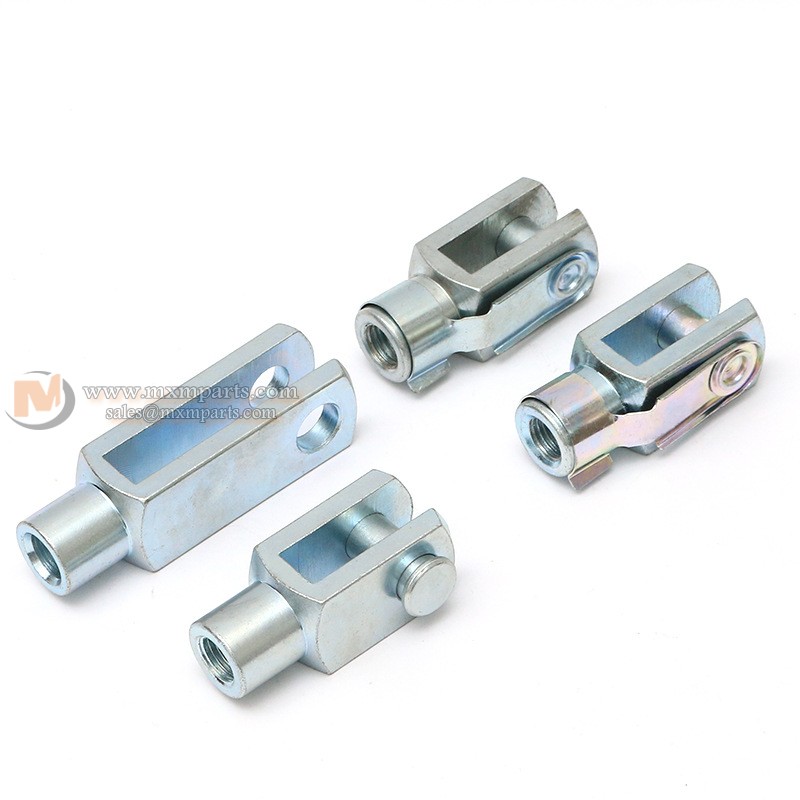

DIN 71752 Clevis Joints

Item: Clevis Joints / Fork Head
Standard: Din 71752
Material: Galvanized Carbon Steel Q235, Y12PB
Technics: CNC milling, Drilling, CNC Turning
Finished by : Zinc plated, Nickel Plated Available
Application: Gaslift, Pneumatic & Hydraulic Cylinder End Joints

China Pneumatic & Hydraulic Cylinder End Joints Source Factory Produce Din 71752 Clevis Joints / Fork Head With High Quality & Low Price.
We are very glad to receive your inquiry.

Contact Now

Keywords： Fork Head , Ball Joints , Clevises , Clevis Joints , DIN71752 , CNC Machining , CNC Turning , Turned Parts , Machined Parts

Descriptions

Descriptions

Clevis Joints Fork Head China Source Factory

A Clevis Joint is a type of coupling where the mating component fits between the forks and is held in place via a clevis pin. Made to DIN 71752 and also known as a fork end or yoke, they are commonly used as a coupling on the end of air cylinders or at the either end of a turnbuckle or wire rope for tensioning.

How Does Clevis Joints Working?

Clevis joints provide secure connections in machine construction. They consist of a clevis combined with other fastening elements. Clevis joints are used to support linear thrust or tractive movements. They are also used for applications relating to cylinders or bearings.

Clevis joints are designed to fit rod ends so that they can be assembled together without any problems. norelem offers clevis joints in various versions. Clevis joints are available with either ball bearings or plain bearings. Both versions are available with an external and internal thread.

Table according to DIN 71752:

dimensions in mm

d1	g	a1	a2	b1	b2		d2		d3	f	l1	l2		l3	r3	Weight kg approx.
H9	±0,5	a1	+0,3 -0,16	B13		Maximum	Rule-thread	Fine-thread	±0,3	±0,2	±0,5		Maximum	±0,2	r3	Weight kg approx.
4	8	8	8	4	4	B13	M4	–	8	0,5	21	16		6	0,5	0,005
4	16	8	8	4	4		M4	–	8	0,5	29	24		6	0,5	0,007
5	10	10	10	5	5		M5	–	9	0,5	26	20		7,5	0,5	0,09
5	20	10	10	5	5		M5	–	9	0,5	36	30		7,5	0,5	0,013
6	12	12	12	6	6		M6	–	10	0,5	31	24		9	0,5	0,015
6	24	12	12	6	6		M6	–	10	0,5	43	36		9	0,5	0,022
8	16	16	16	8	8		M8	–	14	0,5	42	32		12	0,5	0,037
8	32	16	16	8	8		M8	–	14	0,5	58	48		12	0,5	0,054
10	20	20	20	10	10		M10	M10x1,25	18	0,5	52	40		15	0,5	0,074
10	40	20	20	10	10	+0,7 +0,15	M10	M10x1,25	18	0,5	72	60		15	0,5	0,116
12	24	24	24	12	12		M12	M12x1,5	20	0,5	62	48		18	0,5	0,121
12	48	24	24	12	12		M12	M12x1,5	20	0,5	86	72		18	0,5	0,175
14	28	27	27	14	14		M14	M14x1,5	24	1	72	56		22,5	1	0,178
14	56	27	27	14	14		M14	M14x1,5	24	1	101	85		22,5	1	0,258
16	32	32	32	16	16		M16	M16x1,5	26	1	83	64		24	1	0,282
16	64	32	32	16	16		M16	M16x1,5	26	1	115	96		24	1	0,411

Note: All the information provided on this website is provided on an “as is” and “as commonly used in production” basis and you agree that you use such information entirely at your own risk. This website gives no warranty and accepts no responsibility or liability for the accuracy or the completeness of the information and materials contained in this website. Under no circumstances will the website be held responsible or liable in any way for any claims, damages, losses, expenses, costs or liabilities whatsoever (including, without limitation, any direct or indirect damages for loss of profits, business interruption or loss of information) resulting or arising directly or indirectly from your use of or inability to use this website.

What Relative Cylinder Components We Produce?

Our range of rotary components includes rod ends, clevis joints, ball and socket joints, precision spur gears, flex pivots, turnbuckles, gear boxes and rigid couplings. As these are specialist parts don’t hesitate to get in touch with our technical engineers who can help with calculations and choose the right products for your application.

Machining Process: Cold Forging / Machining by CNC Turning, Milling, Drilling

Materials: Carbon Steel / Stainless Steel

Finish: Yellow or White Zinc Plated / Cleaning

China Pneumatic & Hydraulic Cylinder End Joints Source Factory Produce Din 71752 Clevis Joints With High Quality & Low Price.
