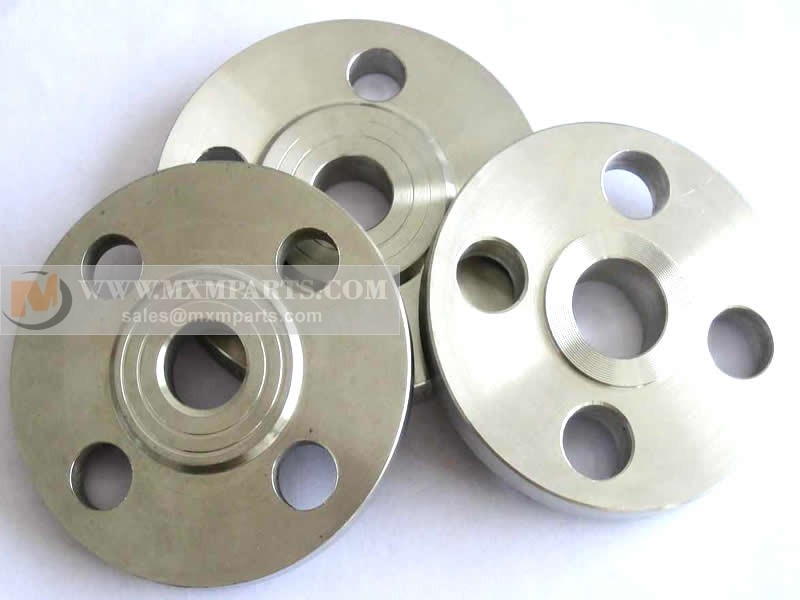

Custom Stainless Steel Flange
Ming Xiao Mfg have a freind factory which specialize in Stainless Steel Flange & Rings manufacturing,the Flanges and Rings are made from hot forging, then CNC turning & machining.
Flanges are disc-shaped parts that are most common in pipeline engineering. The flanges are used in pairs and with the matching flanges on the valve. In plumbing, flanges are primarily used for pipe connections. In the pipelines that need to be connected, a variety of flanges are installed. The low-pressure pipelines can use wire-bonded flanges, and the welding flanges are used at pressures above 4 kg. A gasket is placed between the two flanges and then bolted. Different pressure flanges have different thicknesses and use different bolts.
Pumps and valves, when connected to the pipeline, the parts of these equipment are also made into the corresponding flange shape, also known as flange connection. Connection parts that are closed at the same time by bolting on both planes are generally referred to as “flanges”. For example, the connection of ventilation ducts may be referred to as “flange parts”. However, this connection is only a part of the equipment, such as the connection between the flange and the water pump, it is not good to call the pump “flange parts”. Smaller such as valves, etc., can be called “flange parts”.
| ANSI Stainless Steel Forged Flange | |
| Best quality and competitive price | |
| Description | Stainless steel Flange |
| Products category | SOP SOH BL WN MSS API AWWA LONGWN Flange |
| Airtight surface type | |
| Standard | ANSI,DIN,EN,AS,JIS and customers’ drawings for special use |
| Technology | forged Flange |
| certificate | ISO9001:2000,QS-9000,CNAS, TUV, BV accessories and access to quality inspection |
| Inspections | Factory in-house or Third Party inpection |
| Our main markets | Europe, Middle East Asia,Korea,etc |
| Material | 316L, 316, 304L, 304, |
| Class | 150#,300#,400#,600#,900#,1500#,2500# |
| Production process | raw material–cutting–heating–forging–heat treatment –maching–inspection. |
| Application | Petroleum, chemical, power, gas, metallurgy, shipbuilding,construction, etc |
| Type | SLIP-ON SOCKET-WELDING Flange |
| Delivery | 7-45 Days |
| Remarks | As customers’ request |
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2″ to 24″ DN15 to DN600

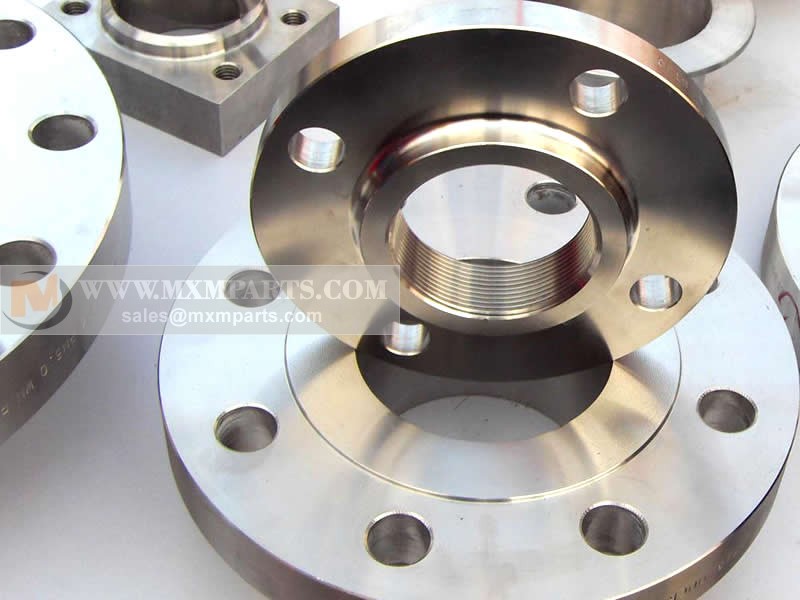

Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: stainless steel 304/304L, 316/316L
Coating: Bright

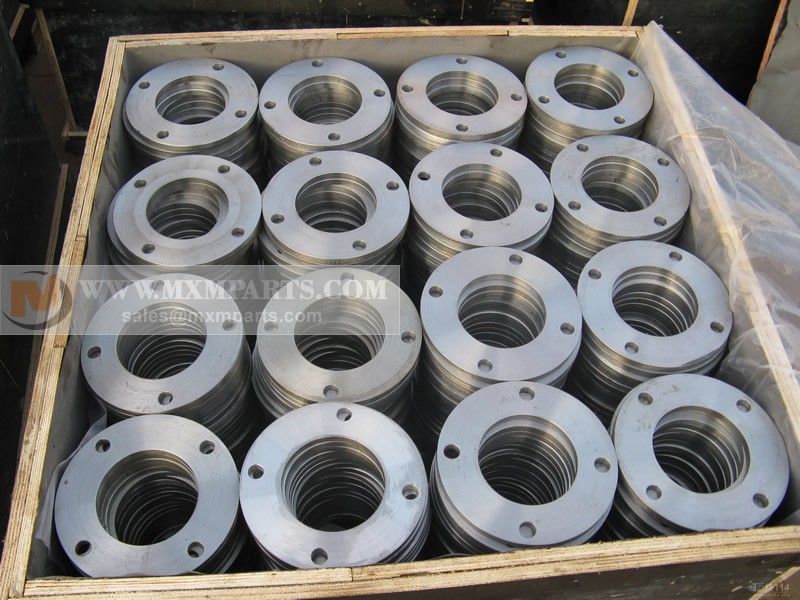

Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN600
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
type12 slip on flange, type 13 threaded flange

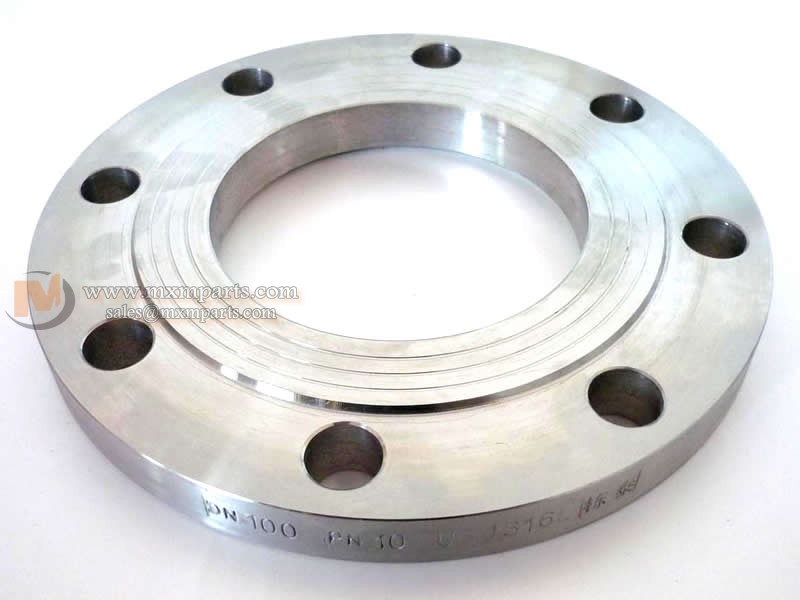

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: Bright
Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN600
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: stainless steel 1.4301, 1.4404
Coating: rust-proof oil, transparent paint, cold and hot galvanize
Package: sea worthy plywooden case, wooden pallet
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
Package: sea worthy plywooden case, wooden pallet
5) JIS FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K, 210k, 280k, 350k
Material: stainless steel SUS304, SUS316
Coating : bright
Packing: sea worthy plywooden case, wooden pallet
Hot forging the rough round rings, then Machining by CNC turning Machines,Drilling holes…
Follow are the informations about our precision parts by CNC machining.
● CNC Precision machining parts accuracy
Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done0.009mm, 20mm size tolerances can be 0.013mm
● Maximum size of Precision parts suit to CNC machining
Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) followingthe outer diameter of 300mm, length less than 150mm
Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high.
Stianless Steel 304 / 304L, 316 / 316L
Can provide Material certificates of EN10204 3.1, PED4.3, Materials comply with CNAS, TUV, BV, ABS,
accessories and access to quality standards.
Lead time for custom samples of metal machined parts is 15days.
Lead time for mass production:generally a order is 30-60days, if machining process is too complicated or quantity is very high,the lead time will longer.
We can provide COC (material certificates), Test Report, ROHS / SGS
