Custom Cold Forging Parts

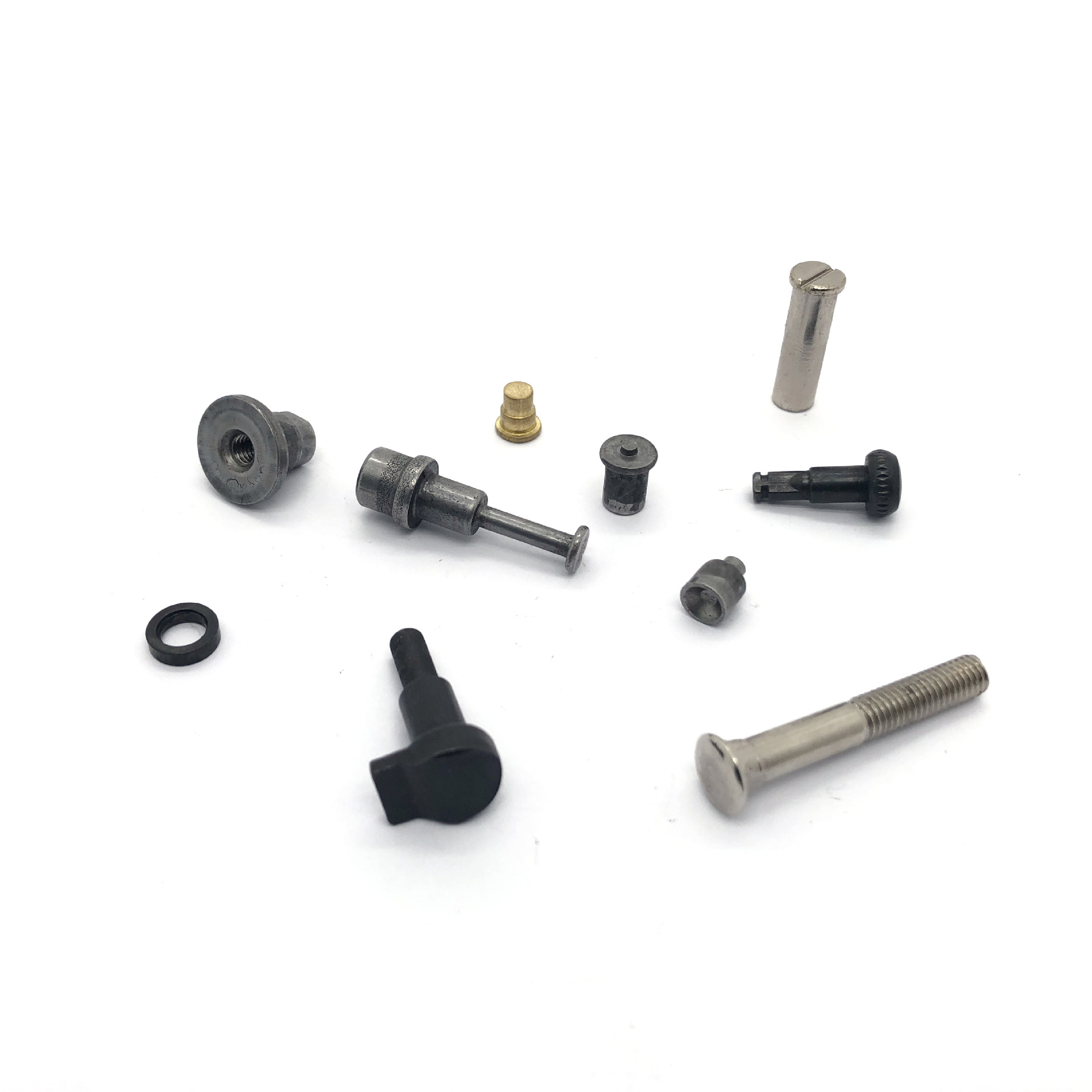

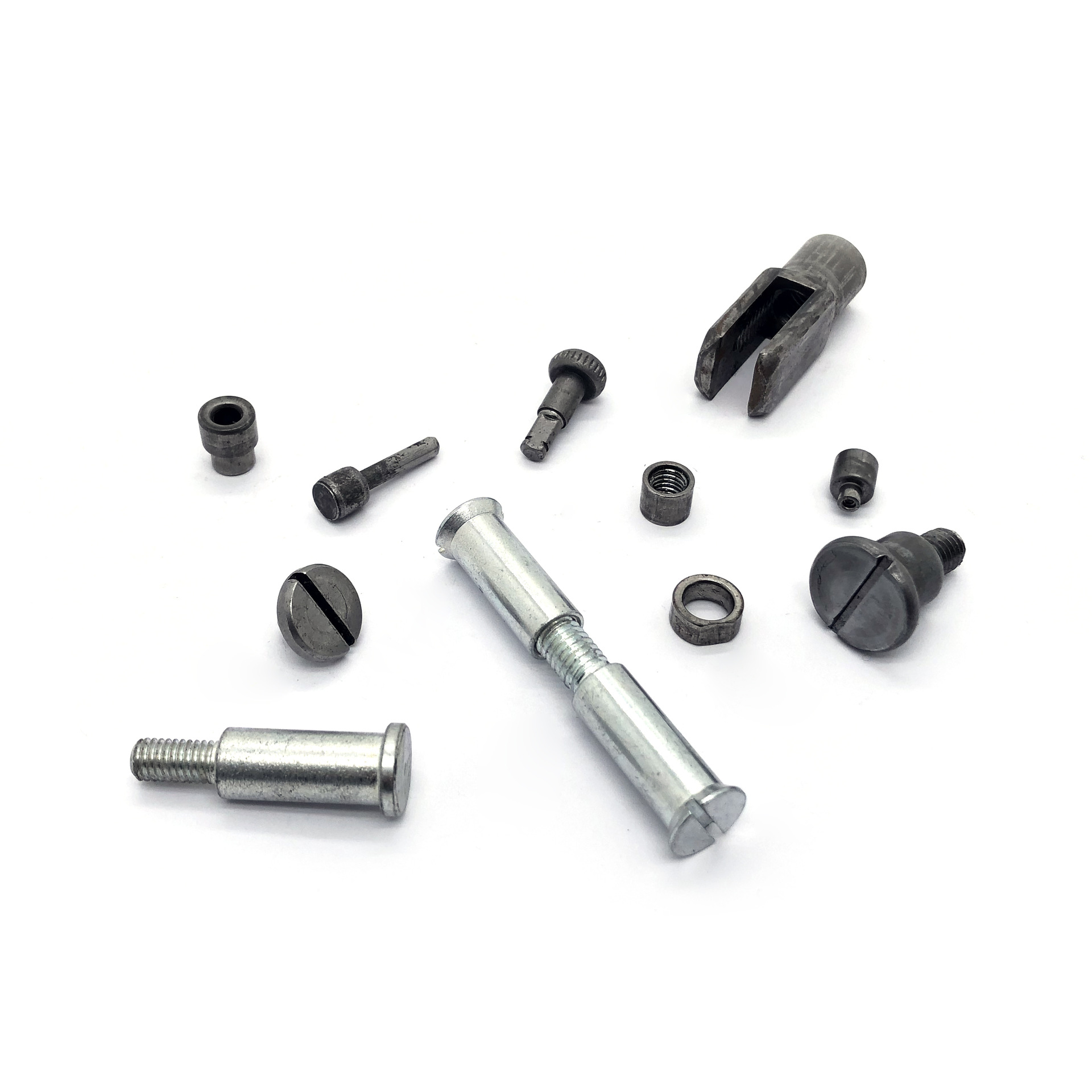

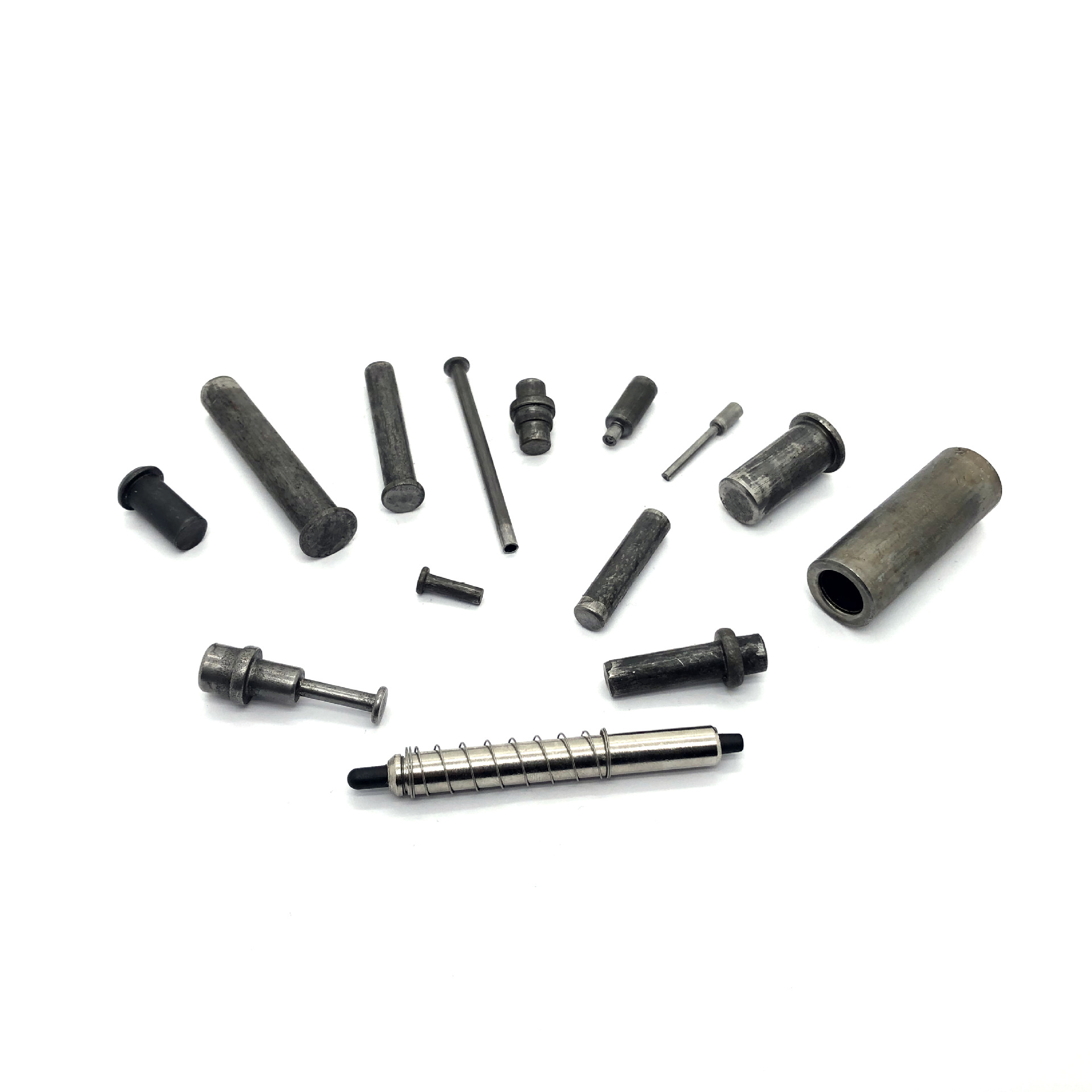

Ming Xiao Metal Parts Manufacturing custom produce cold forging parts(such as bolt,nuts,screw,metal pin,metal stud) according to customer’s drawing or sample, we made nonstandard fasteners by cold heading / cold forging or lathing – handle pins, Dowel Pins, nonstandard hex,squre,philips,pan head screws & bolt,pins,nuts of square nuts,self lock nut,all kinds of metal studs,etc.
Cold foging also called Cold heading,the process is one of the new processes for machining less and less cutting metal pressure. It is a kind of molding deformation produced by metal under external force, and the metal volume is redistributed and transferred by means of mould, so as to form the required parts or blank processing method.
The common cold heading parts are fasteners such as bolts, screws, nuts, rivets and pins.
The cold heading is carried out under the condition of normal temperature. The mechanical properties of metal parts can be improved by cold heading. The following table is a comparison of mechanical strength between cold heading bolts and cutting bolts.
It can be seen from the table that, no matter what type of bolt, the tensile strength of the cold heading is about 10% higher than that of the cutting process, and some can even increase by 20%.
This is because the metal fibers of the cold forging parts will not be cut off, the internal structure of the metal is compacted, and the working hardening is accompanied by the existence of the working hardening phenomenon, so the mechanical properties of the metal are improved.
2. cold forging technology can improve the utilization of material. Taking the cold heading bolt as an example, the material utilization rate of the new process “concave hole” six angle bolts can reach more than 99%.
In addition to the loss of material head and tail, no cutting process was achieved. For cutting, the material utilization rate is only 40%. The material utilization rate of the cold heading nut can also reach about 80%, and the material utilization rate of the cutting nut is only 54%.
3. cold heading technology can greatly improve the productivity. If the cold heading nut is compared with the original cutting process, the productivity will be increased by 25~30 times.
4. cold heading process can improve the surface finish and ensure product accuracy. The general smoothness is up to V5, and the special requirement is V6. For large quantities of bolts, nuts and so on, it can completely guarantee its accuracy.
As the cold heading technology has high productivity, good product quality, and I greatly reduces material consumption, reduces production cost and improves labor conditions, it is widely used in the production of mechanical manufacturing, especially standard fasteners, in which the most representative products produced by multi position cold heading machines are bolts,screws and nuts.
Sometimes we use cold forging process to produce rough cold forging parts, then machining it again by turning,milling and other machining processes to make the parts with good surface and dimensions.This way can make the production cost reduced and the producing processes more less.it’s a more competitive way to produce high quantity parts.
The technics & capabilities for cold forging parts : Including high-precision precision grinder, multi-function cold heading machine, multi-function forming machine, wire drawing machine, automatic thread rolling machine, precision automatic car, drilling machine, tapping machine, polishing machine and a complete set of heat treatment equipment.
The precision telorance can reach to +/- 0.05mm, and the surface roughness can reach N6 standard after milling.
Available Materials for cold forging parts: carbon steel, alloy steel, aluminum alloy, copper alloy, stainless steel etc
Finish treating:heat treating,blackening, electroplating of chrome/zinc/nickel plated,hot-dip galvanizing, dacromet, etc.
Lead time for custom samples of cold forging parts is 30days.
Lead time for mass production:generally a order is 30-60days, if need further machining or quantity is very high,the lead time will longer.
We can provide COC (material certificate), Test Report, ROHS / SGS, plating report or coating reports also available !
