China Supplier Custom Stainless Steel Turning Parts
Ming Xiao Manufacturing Co., Ltd engaged in Stainless Steel Turning Parts manufacturing more than 20 years, after years of upgrading, it has now been equipped more than 100set processing machines, some are advanced precision processing equipment.
Such as 3,4,5 axis CNC milling center,Turn & Mill Combination CNC Lathe,Swiss CNC Lathe, and many small CNC lathes & automatic lathes.
we can optimize the turning processes to make the machining cost to be lowest, for high precison turned parts or with a certian accuracy required turned parts that we use CNC Lathe to produce, and low tolerance requested dimensions we use old lathe machine to produce, and small turned parts we use automatic lathe machine to produce.
What is (CNC) Lathe Turning?
Lathe Turning process refers to lathe machining as part of machining. Lathe machining mainly uses a turning tool to turn a rotating workpiece. Lathes are mainly used to machine shafts, discs, sleeves and other workpieces with rotating surfaces. They are the most widely used type of machine tooling in machinery manufacturing and repair factories.
It is on the lathe that the shape and size of the blank are changed by the rotational motion of the workpiece and the linear or curved motion of the tool, and it is processed to meet the requirements of the drawings.
Turning is a method in which a workpiece is cut by a workpiece on a lathe with respect to a tool rotation. Turning machining can be mainly provided by the workpiece rather than the tool.
Lathe Turning is the most basic and common method of cutting and it occupies a very important position in production. Turning is suitable for machining rotary surfaces. Most workpieces with rotary surfaces can be machined by turning methods such as inner and outer cylindrical surfaces, inner and outer conical surfaces, end surfaces, grooves, threads, and rotary forming surfaces. The tools used are mainly turning tools.
Lathes are the most widely used category in all types of metal cutting machine tools, accounting for about 50% of the total number of machine tools. The lathe can be used to turn a workpiece with a turning tool, but can also use drills, reamers, taps, and knurling tools for drilling, reaming, tapping, and knurling. According to different characteristics of the process, layout and structural characteristics, lathes can be divided into horizontal lathes, floor lathes, vertical lathes, turret lathes and copying lathes, most of which are horizontal lathes.
As a professional stainless steel turning parts supplier from China,we source raw materials from bars,tubes, hot forged blanks,investment castings. Common stainless steel turning parts are made from SS303,SS304,SS316…
Our Advantages of CNC Turning:
1) Various types of processing equipment, meet different quality requirements of the product, optimize the cost.
2) Rich machining experience, mature supporting services at our local, to meet the different needs of customers.
Available Materials & Technical Parameters:
| Stainless Steel: | SS201,SS301,SS303,SS304,SS316,SS430… |
| Highest Accuracy: | ±5μm |
| Surface Finish: | Ra0.4 / Rz 3.2 / N5 |
We provide precision CNC turning & Milling Services for producing Machine Parts for all industries,as long as you can provide detailed drawings and requirements, we can get back to you within two working days.
- Designs can in many kinds of formats, such as pictures, 3D model, CAD,etc.
- Price terms: FOB Ningbo, CIF destination port.
- Packing:paper cartons, or Tape and Reel for SMT Pick and Place, then by Composite-board(seaworthy plywood) pallets.
Are you finding a Stainless Steel Parts CNC turning Service?

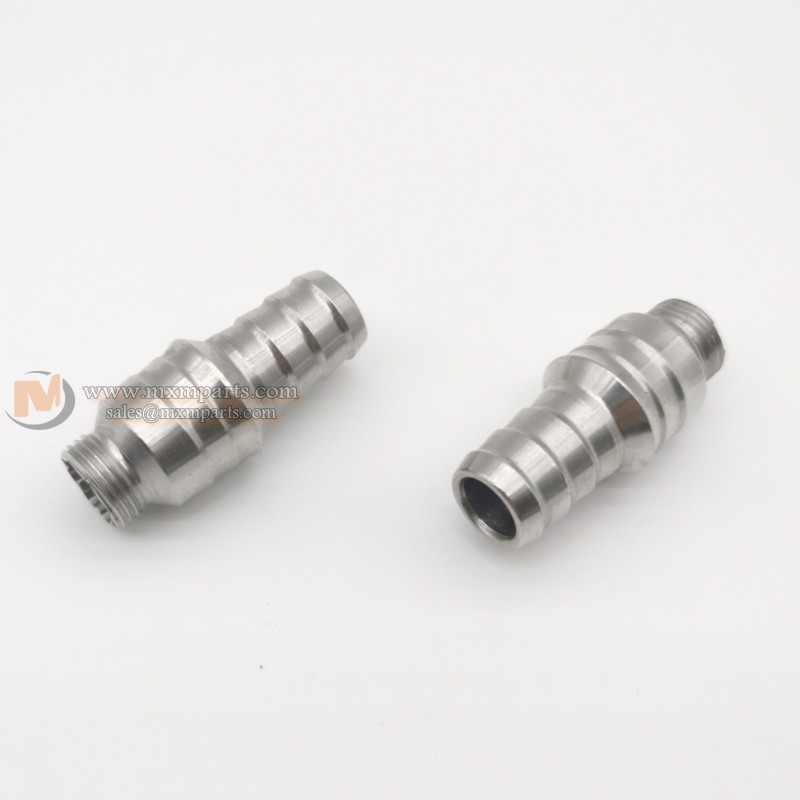

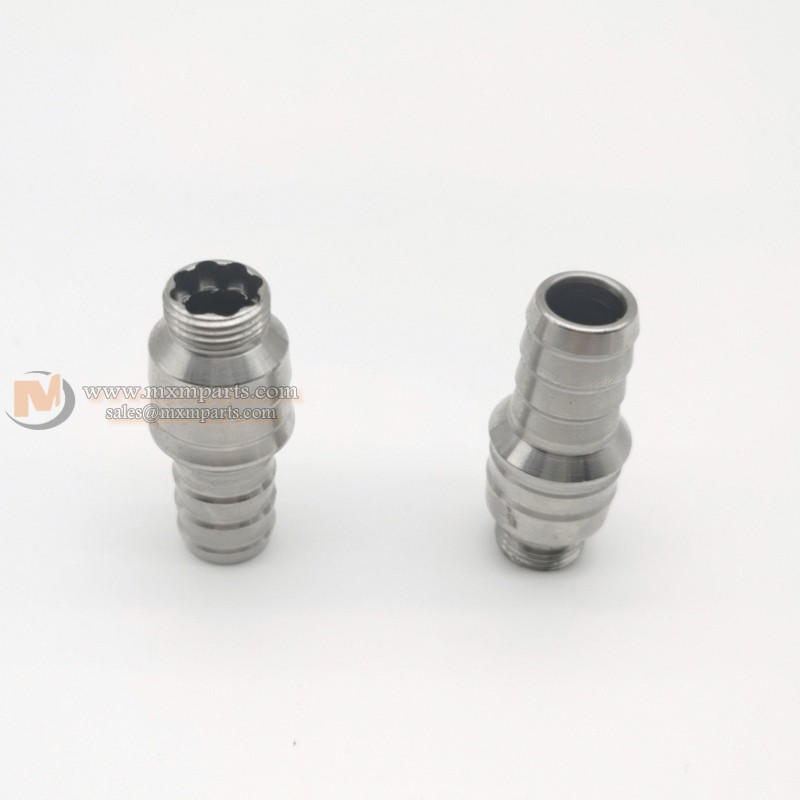

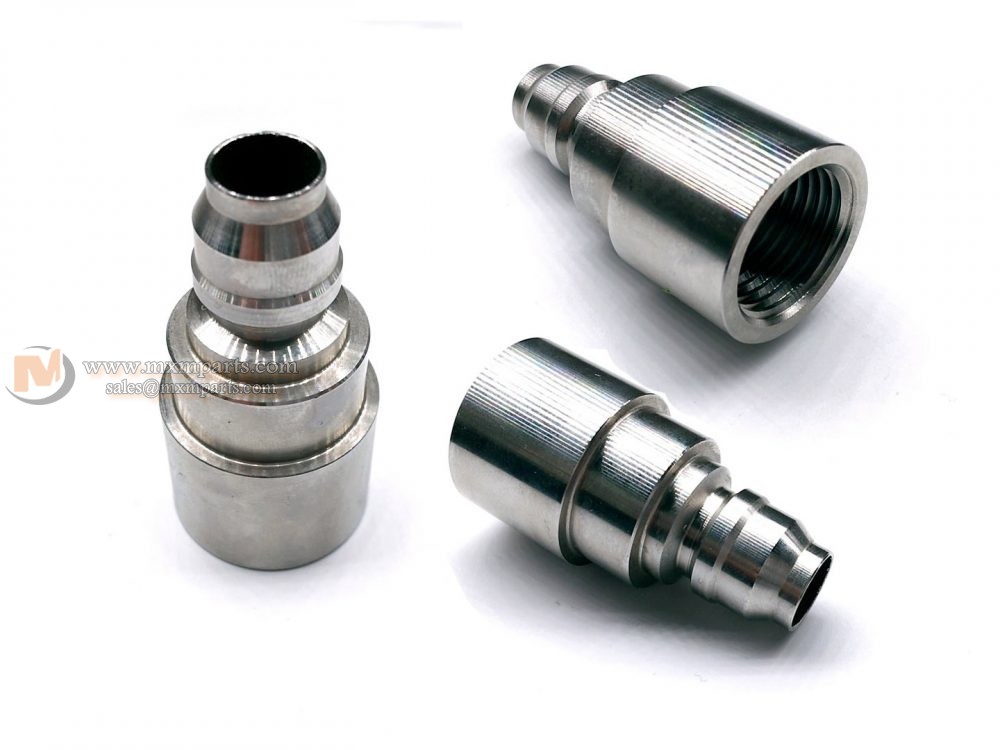

We custom produce various stainless steel turning parts, such as tube coupling, hose coupling, shaft,Axis,pipe joint parts,hose connectors & transition connectors,copper machined tube, flange,bushing, Sleeve,knighthead,pedestal,Piston Rod,insert long pin, Dowel Pin,Drive Pin & Rod,ball head bolt,long rod machined parts,long thread tube parts,nonstandard thread bolt & nut,Extension Rod, etc.
We custom Stainless Steel turning Parts for all industries, provide precision CNC machining services,welcome contact us to discuss about your projects.
The technics & capabilities for Stainless Steel Turning Parts : manual lathe turning,automatic lathe turning, numerical control lathe turning, CNC machining,Tooling milling & Drilling, Grinding, Thread rolling, knurs rolling, cutting, cold heading, hot die forging, welding, Riveting, milling, components Assembly, etc.
Follow are the informations about our precision parts by CNC machining.
● CNC Precision machining parts accuracy
Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done0.009mm, 20mm size tolerances can be 0.013mm
● Maximum size of Precision parts suit to CNC machining
Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) following the outer diameter of 600mm, length less than 6000mm
Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high.
Available Materials for machined parts: Aluminum,copper/ brass,stainless steel,stainless iron,carbon steel, Mild steel,cold roll steel, Plastic Bar,etc.
● Materials for CNC Precision machining parts
We can produce CNC machining components’ materials are:
An aluminum alloy series: all aluminum and aluminum alloy (ASTM Grade from 1050-7475), commonly used are: 2011,5052,6061,7075, etc.
(2) Copper Alloy Series: all copper and copper alloy, copper, copper, brass, bronze, phosphor (the ASTM grades from C11000 to C38000), commonly used: C11000, C22000, C26000
(3) Stainless Steel Series: all the basic machining stainless steel, the ASTM grades (JISgrade corresponds to the basic, together with the SUS can):201,301,303,304,314,316,420,430,630
Steel series: all the basic machining steel can be processed, for example: 20 # steel,45 steel, easy to cut iron (common SUM24L, SUM22, Y12, Y15)
Finish treating: Anodizing,hard anodizing,electroplating of chrome/zinc/nickel plated, tinning,copperize,Colour spray-painting, blackening, hot-dip galvanizing, tephlon plating, etc.
Lead time for custom samples of stainless steel turning parts is 10-20days.
Lead time for mass production:generally a order is 30-60days, if machining process is too complicated or quantity is very high,the lead time will longer.
We can provide COC (material certificate), Test Report, ROHS / SGS, plating report or coating reports also available !
