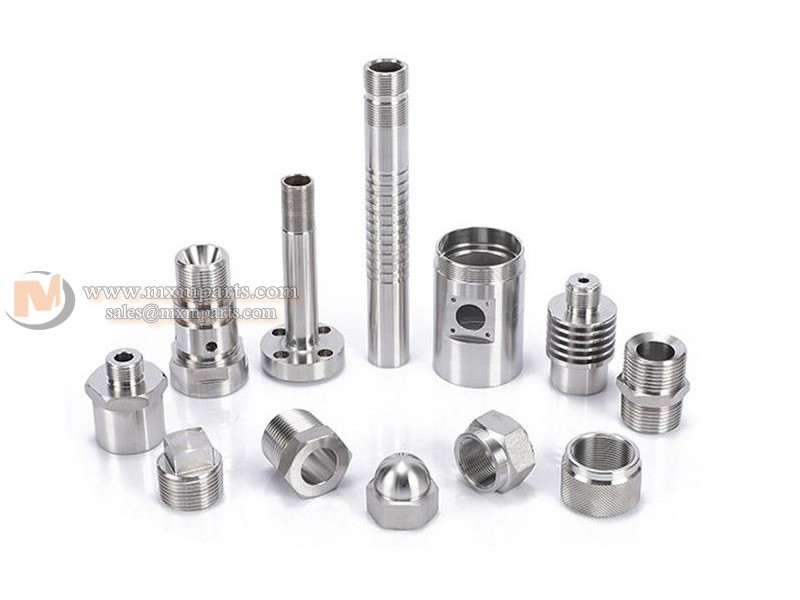

Swiss Type CNC lathe Turned Parts

We custom Precision Swiss Type CNC Lathe Turned Parts For World Customers.
Name: Precision Turned Parts
Material: Stainless Steel,Carbon Steel, Aluminum Alloy,Brass
Accuracy: +/-0.005mm
Finish: Natural, passivation for stainless steel,anodizing & anodine for aluminum,zinc plating,chrome plating,nickel plating,hot galvanizing heat treating,oiled for carbon steels, etc.
Machined type: CNC Type CNC Lathe Turning, Automatic CNC Turning

If you are interest in our Swiss Type CNC Lathe turning services, welcome send us a inquiry, then we can discuss about your turning parts project !

Contact Now

Keywords： CNC Turning Parts , aluminum turned parts , steel turned parts , CNC Turned Parts , CNC Turning , Turned Parts , Aluminum Turning Parts , Turning Parts , Steel Turning Parts , Brass Turning Parts , Stainless Steel Turning Parts

Descriptions

Swiss Type CNC Lathe Turned Parts

What is Swiss type cnc lathe turning?

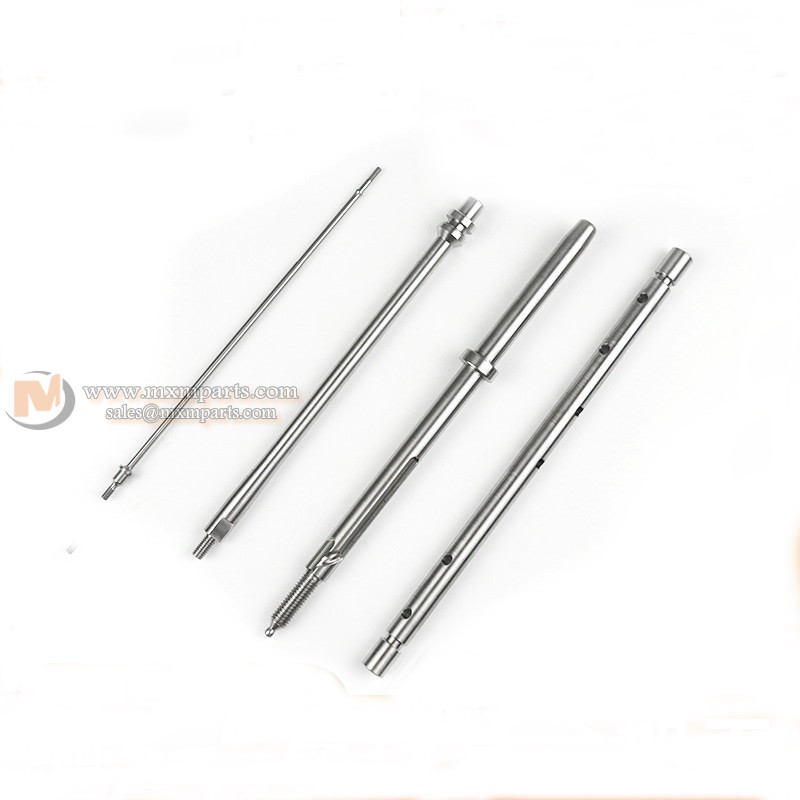

Custom precision steel and brass parts by Swiss type CNC lathe machining service.
Max. length: 250mm
Max. diameter: 38mm
Accuracy: 0.01mm

Ming Xiao Manufacturing Co., Ltd engaged in Turning Parts manufacturing more than 20 years,after years of upgrading, it has now been equipped more than 100 sets various processing machines, some are advanced precision processing equipment.

Such as 3,4,5 axis CNC milling center,Turn & Mill Combination CNC Lathe,Swiss type CNC Lathe, many small CNC lathes & automatic lathes.

We can optimize the machining processes to make the machining cost to be lowest, for high precison turned parts or with a certian accuracy required turned parts that we use CNC Lathe to produce, and low tolerance requested dimensions we use old lathe machine to produce, and small turned parts we use automatic lathe machine to produce.

Lathes are the most widely used category in all types of metal cutting machine tools, accounting for about 50% of the total number of machine tools. The lathe can be used to turn a workpiece with a turning tool, but can also use drills, reamers, taps, and knurling tools for drilling, reaming, tapping, and knurling. According to different characteristics of the process, layout and structural characteristics, lathes can be divided into horizontal lathes, floor lathes, vertical lathes, turret lathes and copying lathes, most of which are horizontal lathes.

As a professional turning parts supplier from China,we can custom producing all kinds Carbon & Stainless steel turning parts,Copper & Brass turning parts,Aluminum Turning Parts & Machined parts.

Such as tube coupling, hose coupling, shaft,Axis,pipe joint parts,hose connectors & transition connectors,copper machined tube, flange,bushing, Sleeve,knighthead,pedestal,Piston Rod,insert long pin, Dowel Pin,Drive Pin & Rod,ball head bolt,long rod machined parts,long thread tube parts,nonstandard thread bolt & nut,Extension Rod, etc.

Need Swiss Type CNC Lathe Turned Parts

Do you need custom swiss type cnc lathe turned parts? We custom precision turning Parts for all industries, if you are interest in our Swiss type cnc lathe turning services,welcome contact us to discuss about your projects.

Machining Technics

The technics & capabilities for machined parts : manual lathe turning,automatic lathe turning, numerical control lathe turning, CNC machining,Tooling milling & Drilling, Grinding, Thread rolling, knurs rolling, cutting, cold heading, hot die forging, welding, Riveting, milling, components Assembly, etc.

Follow are the informations about our precision parts by CNC machining.

● CNC Precision machining parts accuracy

Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done0.009mm, 20mm size tolerances can be 0.013mm

● Maximum size of Precision parts suit to CNC machining

Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) followingthe outer diameter of 300mm, length less than 150mm

Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high.

Materials & Finishes

Available Materials for machined parts: Aluminum,copper/ brass,stainless steel,stainless iron,carbon steel, Mild steel,cold roll steel, Plastic Bar,etc.

● Materials for CNC Precision machining parts

We can produce CNC machining components’ materials are:

An aluminum alloy series: all aluminum and aluminum alloy (ASTM Grade from 1050-7475), commonly used are: 2011,5052,6061,7075, etc.

(2) Copper Alloy Series: all copper and copper alloy, copper, copper, brass, bronze, phosphor (the ASTM grades from C11000 to C38000), commonly used: C11000, C22000, C26000

(3) Stainless Steel Series: all the basic machining stainless steel, the ASTM grades (JISgrade corresponds to the basic, together with the SUS can):201,301,303,304,314,316,420,430,630

Steel series: all the basic machining steel can be processed, for example: 20 # steel,45 steel, easy to cut iron (common SUM24L, SUM22, Y12, Y15)

Finish treating: Anodizing,hard anodizing,electroplating of chrome/zinc/nickel plated, tinning,copperize,Colour spray-painting, blackening, hot-dip galvanizing, tephlon plating, etc.

Lead Time

Lead time for custom samples of metal machined parts is 10days.

Lead time for mass production:generally a order is 30-60days, if machining process is too complicated or quantity is very high,the lead time will longer.
