CNC Milling SS304 Parts Custom Service
Ming Xiao Manufacturing Co., Ltd engaged in Machine Parts manufacuring more than 20years,equipped many different types of machining machines such as automatic turning machines,CNC turning machines,Swiss CNC turning lathe, Turn & Mill Combination CNC lathe, 3,4,5 axis CNC milling centers.

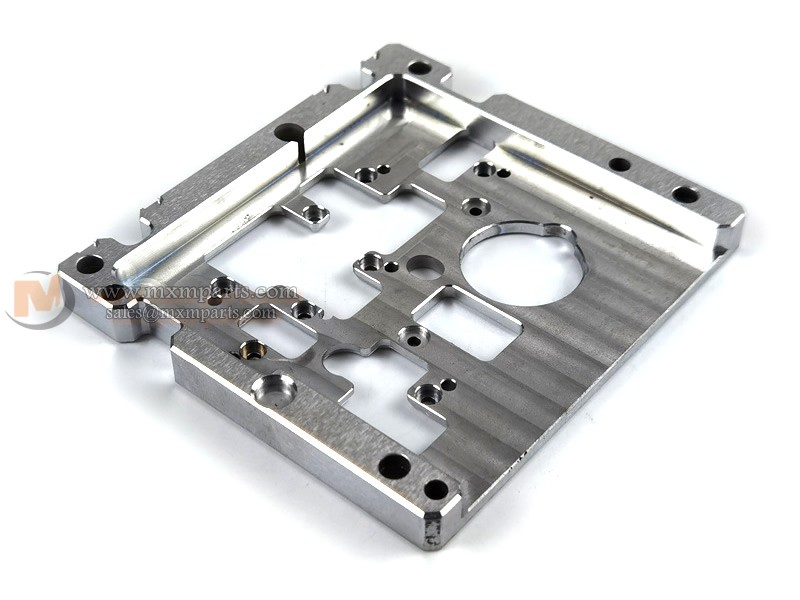

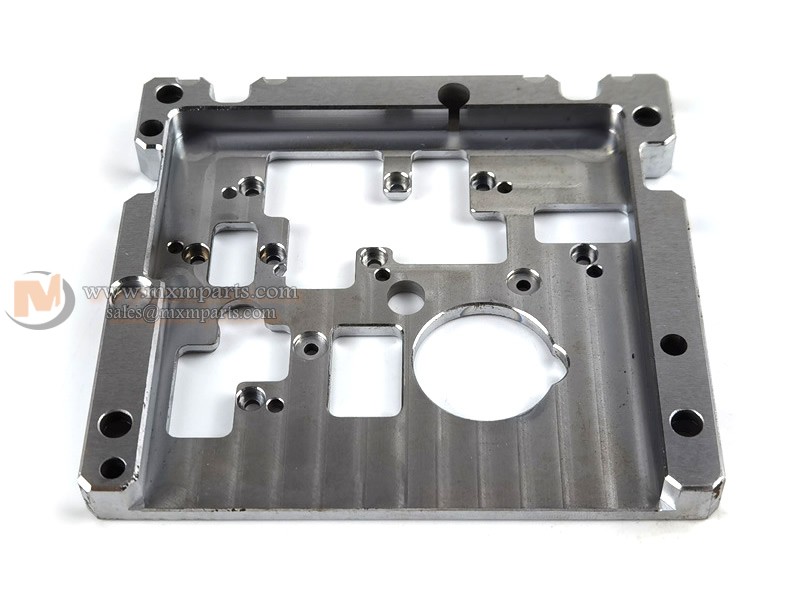

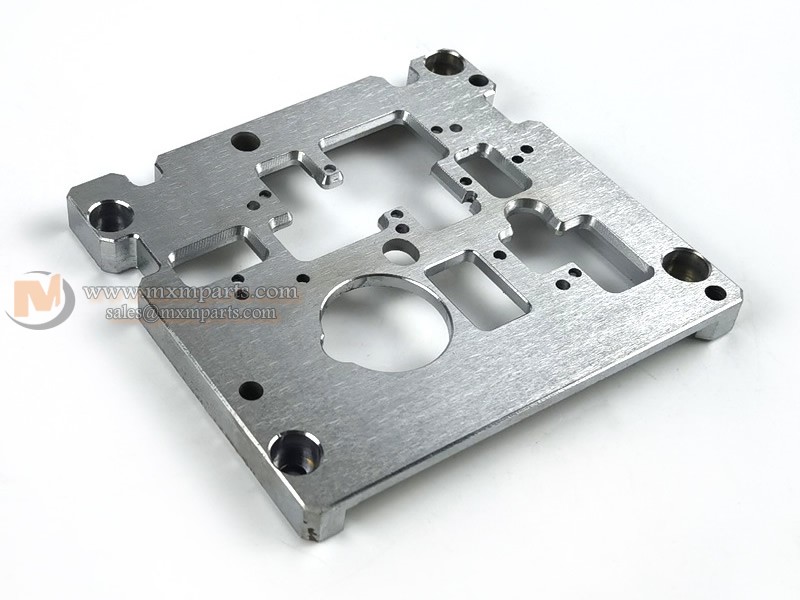

Precision Machining CNC Milling SS304 Parts
We undertake the manufacturing of various mechanical parts for world clients, providing OEM customized processing services for CNC milling SS304 parts.
1. Technologies: CNC milling, CNC lathe turning, WEDM, EDM, etc.
2. Materials: mainly aluminum, cast aluminum, copper, stainless steel, engineering plastics, etc.
3. Surface treatment for aluminum parts: Natural anodizing, Hard anodizing,Color anodizing,Powder coating,Painting,Electrophoretic coating,Chrome Plating.
4. Quantity: mainly in small batches and many varieties, the price is better in large batches, it can be proofed, and it can undertake single large-scale orders.
5. Price and delivery time: Quotation is based on customer drawings, and the delivery time is negotiated and arranged according to customer needs.
6 Inspection tooling: Micrometer, Caliper, Go-Nogo Gauge, Microscope,CMM, etc.
7. Tolerance: reach to +/-0.01mm, high accuracy
8. Drawing Software: 2D of PDF, JPG, CAD, etc./ 3D of igs, step, x_t,etc.
9. Packing: Inner with plastic bag and PE bubble, outer with carton, then put on pallet for sea freight. customized packing according to customers is available.
Custom Quality CNC Milling SS304 Parts
Do you have a CNC Milling SS304 parts need to be customized? Why not send a message to us, Ming xiao Mfg continuous progress, improve our technology and service, and strive to improve quality and service quality,obtaining customer satisfaction, so as to obtain long-term cooperation.
Don’t hesitate to contact us, send your message right now!you will get a rapid response and pleasure communication.
The technics & capabilities for machine parts : manual lathe turning,automatic lathe turning, numerical control lathe turning, CNC machining,Tooling milling & Drilling, Grinding, Thread rolling, knurs rolling, cutting, cold heading, hot die forging, welding, Riveting, milling, components Assembly, etc.
Follow are the informations about our precision parts by CNC machining.
● CNC Precision machining parts accuracy
Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done0.009mm, 20mm size tolerances can be 0.013mm
● Maximum size of Precision parts suit to CNC machining
Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) followingthe outer diameter of 300mm, length less than 150mm
Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high.
Available Materials for machine parts: Aluminum,copper/ brass,stainless steel,stainless iron,carbon steel, Mild steel,cold roll steel, Plastic Bar,etc.
● Materials for CNC Precision machining parts
We can produce CNC machining components’ materials are:
An aluminum alloy series: all aluminum and aluminum alloy (ASTM Grade from 1050-7475), commonly used are: 2011,5052,6061,7075, etc.
(2) Copper Alloy Series: all copper and copper alloy, copper, copper, brass, bronze, phosphor (the ASTM grades from C11000 to C38000), commonly used: C11000, C22000, C26000
(3) Stainless Steel Series: all the basic machining stainless steel, the ASTM grades (JISgrade corresponds to the basic, together with the SUS can):201,301,303,304,314,316,420,430,630
Steel series: all the basic machining steel can be processed, for example: 20 # steel,45 steel, easy to cut iron (common SUM24L, SUM22, Y12, Y15)
Finish treating: Anodizing,hard anodizing,electroplating of chrome/zinc/nickel plated, tinning,copperize,Colour spray-painting, blackening, hot-dip galvanizing, tephlon plating, etc.
Lead time for custom samples of CNC Milling SS304 parts is 10days.(if need tool or mold, will reach to 30 days)
Lead time for mass production:generally a order is 15-30days, if machining process is too complicated or quantity is very high,the lead time will longer.
We can provide COC (material certificate), Test Report, ROHS / SGS, plating report or coating reports also available !
