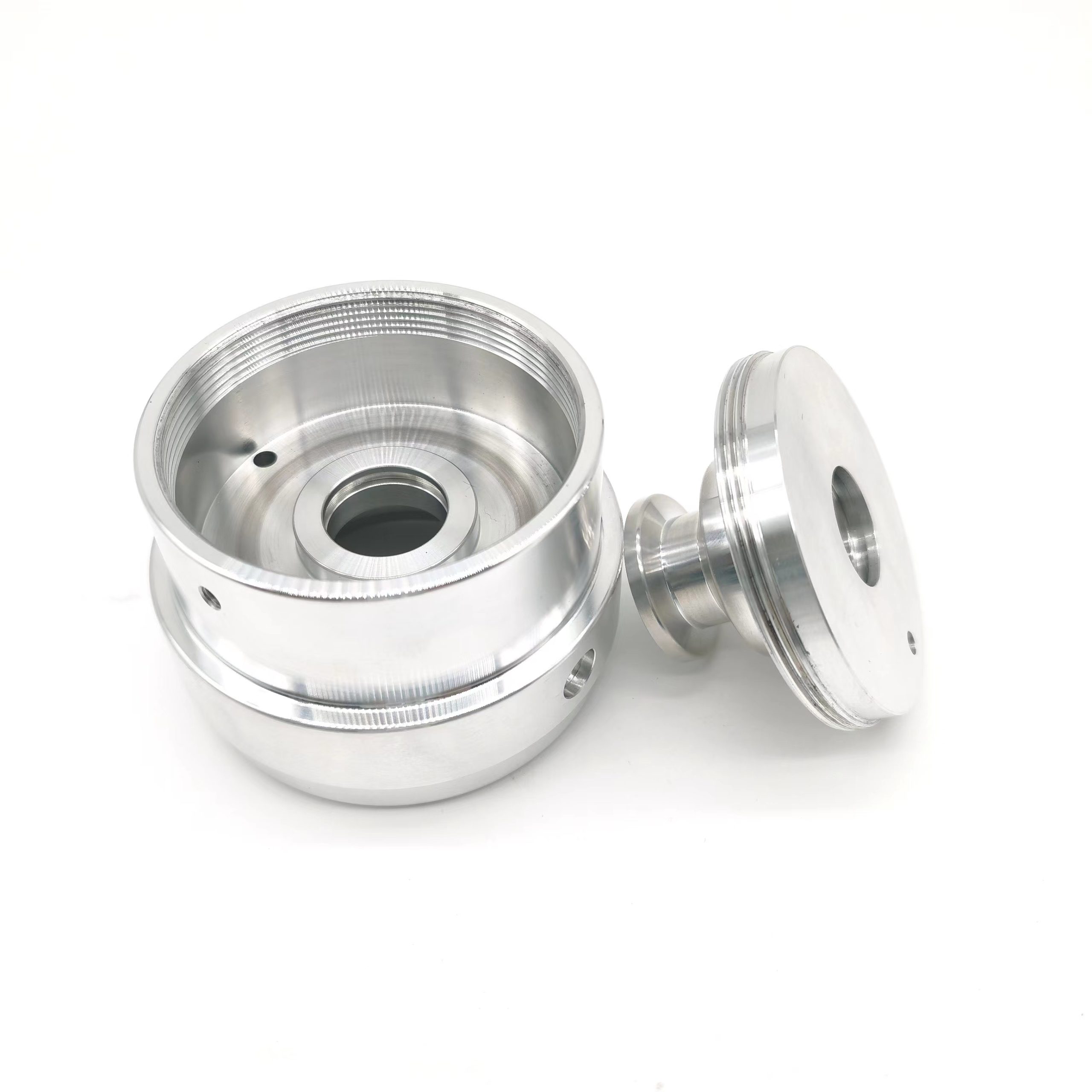

CNC Turning Aluminum Parts: A Step-by-Step Guide

Welcome to my blog! Today, I’ll be guiding you through the process of CNC turning aluminum parts. CNC turning, also known as computer numerical control turning, is a precision machining process that uses a computerized system to control a machine tool. This process is commonly used to manufacture complex parts made of metal, including aluminum. In this blog post, I’ll cover the basic steps involved in CNC turning aluminum parts.

Step 1: Material Selection

The first step in the CNC turning process is material selection. Aluminum is a lightweight and ductile metal, making it suitable for many applications. When selecting an aluminum alloy for your project, consider factors such as tensile strength, hardness, and corrosion resistance. Common aluminum alloys used for CNC turning include 6061, 7075, and 2024.

Step 2: Design and Programming

The next step is to design the part using computer-aided design (CAD) software. The CAD model should include all the necessary details, such as dimensions, contours, and features. Once the design is complete, the CAD data is imported into a CNC programming software, where the toolpaths are generated. Toolpaths are the instructions that tell the CNC machine how to move the tool to shape the part.

Step 3: Pre-Machining Check

Before machining the aluminum part, it’s important to perform a pre-machining check. This involves verifying the toolpaths, material thickness, and any other relevant parameters. It’s crucial to catch any potential errors during this step to avoid costly mistakes during the machining process.

Step 4: Machining

The machining step involves loading the aluminum stock into the CNC machine and starting the cutting process. The CNC machine follows the preprogrammed toolpaths to shape the aluminum part. During the machining process, it’s essential to monitor the tool wear and tool temperature. If necessary, tool breaks or tool replacements may be required.

Step 5: Post-Machining Check

After the machining process is complete, it’s essential to perform a post-machining check. This involves inspecting the part for any defects, such as burrs, tool marks, or other unacceptable features. If any issues are found, the part can be reworked or scrapped depending on the severity of the issue.

Step 6: Finishing and Assembly

Once the post-machining check is complete and the part is acceptable, the finishing process begins. This may involve polishing, deburring, or other surface treatment techniques to enhance the part’s appearance and/or performance. Once the finishing process is complete, the aluminum part can be moved to the assembly area for integration into the final product.

Conclusion

CNC turning aluminum parts is a precision machining process that requires careful attention to detail at every step of the process. By following these six steps outlined in this blog post, you can ensure that your aluminum parts are accurately manufactured and ready for their intended application. Remember to double-check all toolpaths, monitor tool wear, and perform thorough quality checks at every stage to ensure optimal results.
