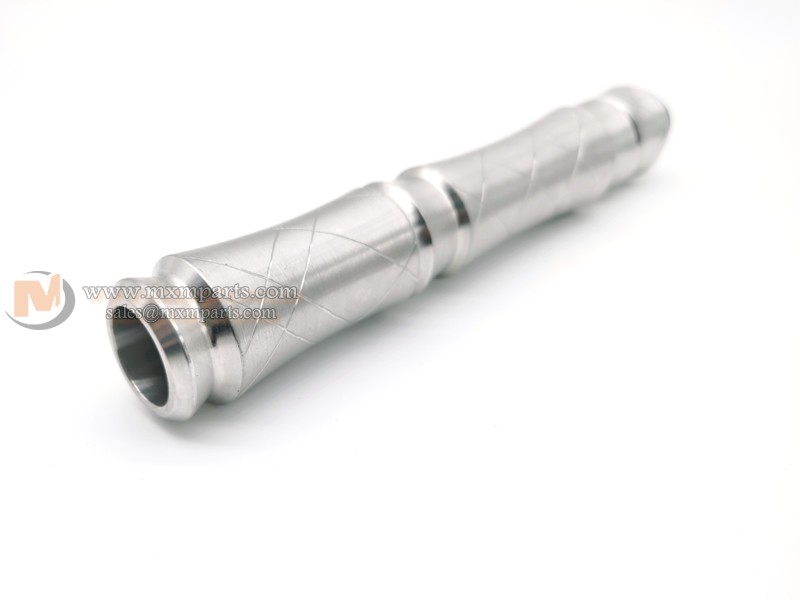

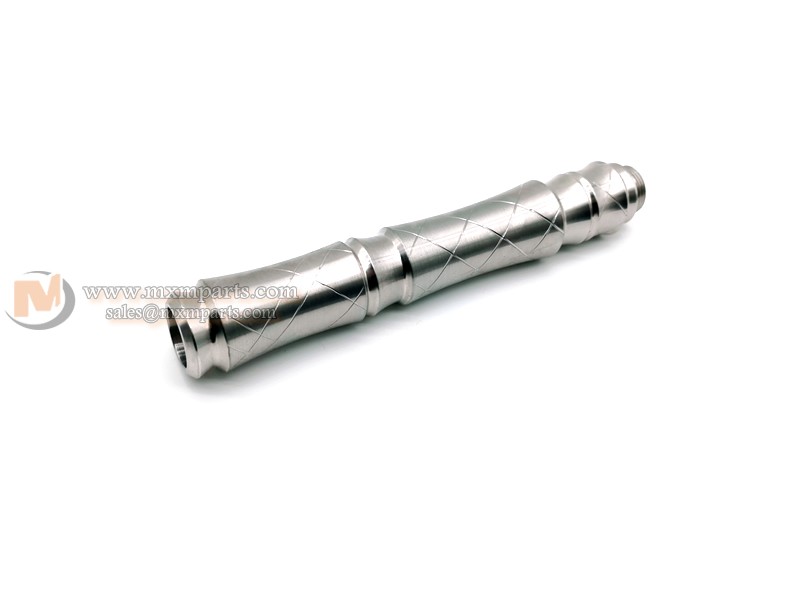

What are CNC Turning Pattern Parts?
CNC Turning Pattern Parts are machined parts that have a unique pattern carved onto them using a Computer Numerical Control (CNC) lathe. This type of machining is a complex process, which requires precision cutting and programming of the material to achieve a desired pattern.
CNC machines are often used to create complex patterns, as they can accurately control the motion of the cutting tool in three dimensions. Patterns created using CNC turning can be used for aesthetic purposes or to strengthen parts.
How Are Pattern Parts Made on a CNC Lathe?
When producing CNC turning pattern parts, the process typically begins with the programming of a three-dimensional model of the desired pattern onto the CNC machine. The model is then fed into the machine, where the cutting tool is accurately guided to the locations specified on the model.
The cutting tool moves in two axes while the material rotates around the cutting tool. Depending on the complexity of the part, the programming and cutting process can take several hours to complete. After the pattern has been shaped, a finishing process such as sanding may be necessary to create a smooth surface.
Uses of CNC Turned Parts With Pattern
Turning with 3D pattern parts can be used in many applications across various industries. One of the most common uses for these parts is in the automotive industry, where the pattern can be used to give a decorative look to a surface on vehicles.

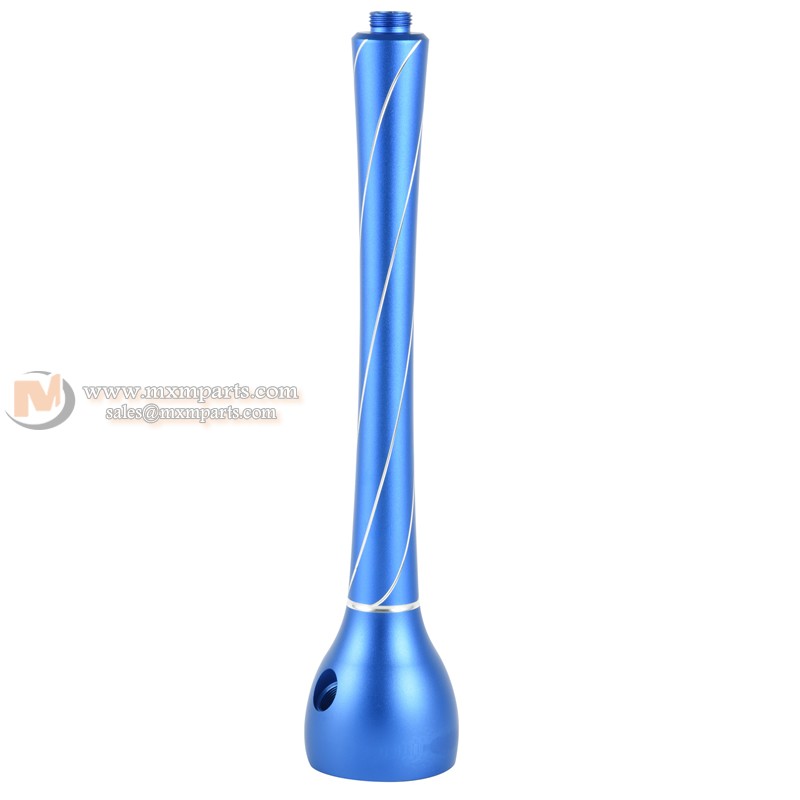

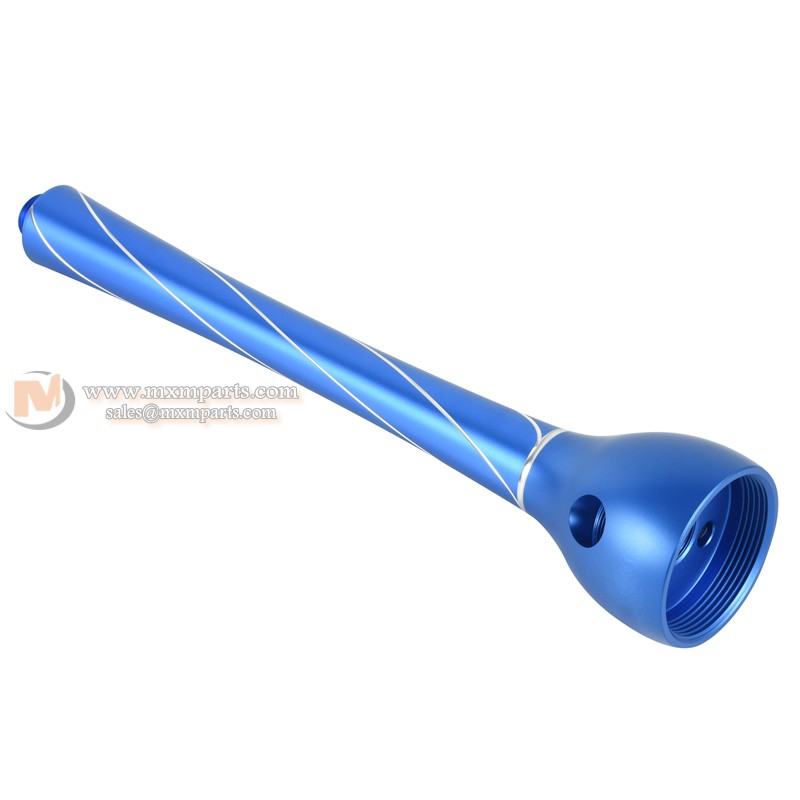

In the aerospace industry, CNC turning patterned is often used to increase the strength of parts by creating areas of greater thickness. Patterns can also be created on materials such as aluminum, which can provide a more aesthetic look to the finished product.
Why Choose Ming Xiao Mfg for CNC Turning Pattern Parts?
Ming Xiao Manufacturing is a highly skilled supplier of CNC turned parts with pattern. We offer a comprehensive service that includes programming and cutting, finishing, and assembly.
Moreover, Ming Xiao Manufacturing offers competitive pricing and quick turnaround times, enabling their clients to receive high-quality products in less time.
With their experienced staff and state-of-the-art CNC machines, Ming Xiao Manufacturing is the ideal choice for high-precision pattern turning.
Summary
CNC Turning Pattern Parts are machined components with a pattern carved onto them using a CNC lathe. The process of producing these parts is quite complex and requires precision cutting and programming of the material.
These parts are used in automotive, aerospace, and other industries to add an aesthetic look to a surface, as well as to increase strength.
Ming Xiao Manufacturing is a trustable supplier of CNC turned parts with pattern and can offer a comprehensive service, competitive pricing, and quick turnaround times.
The technics & capabilities for machined parts : manual lathe turning,automatic lathe turning, numerical control lathe turning, CNC machining,Tooling milling & Drilling, Grinding, Thread rolling, knurs rolling, cutting, cold heading, hot die forging, welding, Riveting, milling, components Assembly, etc.
Follow are the informations about our precision parts by CNC machining.
● CNC Precision machining parts accuracy
Machining accuracy: IT6 level, such as the 10mm dimensions, tolerances can be done0.009mm, 20mm size tolerances can be 0.013mm
● Maximum size of Precision parts suit to CNC machining
Lathe parts (turning parts , such as axes, coupling,bushing, thread rod , etc.) followingthe outer diameter of 300mm, length less than 150mm
Milling parts (box, cylinder, etc.) 800mm long, 330mm wide, 120mm high.
Available Materials for machined parts: Aluminum,copper/ brass,stainless steel,stainless iron,carbon steel, Mild steel,cold roll steel, Plastic Bar,etc.
● Materials for CNC Precision machining parts
We can produce CNC machining components’ materials are:
An aluminum alloy series: all aluminum and aluminum alloy (ASTM Grade from 1050-7475), commonly used are: 2011,5052,6061,7075, etc.
(2) Copper Alloy Series: all copper and copper alloy, copper, copper, brass, bronze, phosphor (the ASTM grades from C11000 to C38000), commonly used: C11000, C22000, C26000
(3) Stainless Steel Series: all the basic machining stainless steel, the ASTM grades (JISgrade corresponds to the basic, together with the SUS can):201,301,303,304,314,316,420,430,630
Steel series: all the basic machining steel can be processed, for example: 20 # steel,45 steel, easy to cut iron (common SUM24L, SUM22, Y12, Y15)
Finish treating: Anodizing,hard anodizing,electroplating of chrome/zinc/nickel plated, tinning,copperize,Colour spray-painting, blackening, hot-dip galvanizing, tephlon plating, etc.
Lead time for custom samples of metal machined parts is 10days.
Lead time for mass production:generally a order is 30-60days, if machining process is too complicated or quantity is very high,the lead time will longer.
We can provide COC (material certificate), Test Report, ROHS / SGS, plating report or coating reports also available !
